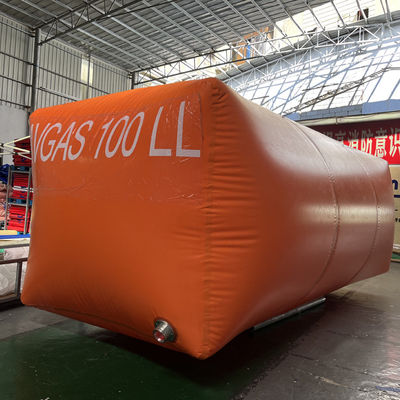

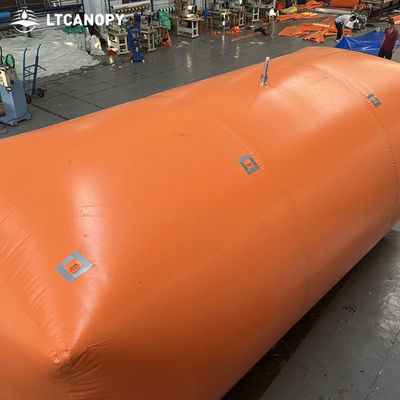

Litong Custom Fuel Bladder 20000 Liter Flexitank Oil Storage Bladder

Large Image : Litong Custom Fuel Bladder 20000 Liter Flexitank Oil Storage Bladder

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LTCANOPY
Certification:	SVHC certificated

Payment & Shipping Terms:

Price:	$800/pieces 1-49 pieces
Packaging Details:	packing by our tool bag (including our company catalog and colorul sample plate
Supply Ability:	10000 Square Meter/Square Meters per Month

Contact Now

Detailed Product Description

Thickness:	Heavyweight	Feature:	Water Resistant, QUICK-DRY, Flame Retardant, Anti-Mildew, Waterproof, Chemical-Resistant, Oilproof, Tear-Resistant, Anti-UV, Windproof
Type:	Tarpaulin	Product Type:	Other Fabric
Supply Type:	Make-to-Order	Material:	PVC, PVC Fabric
Pattern:	Coated	Style:	Ripstop
Width:	Customized	Technics:	Woven
Yarn Count:	1000D*1300D	Density:	20*20
Weight:	1500gsm	Coated Type:	Pvc Coated
Use:	Outdoor, Outdoor-Agriculture, Outdoor-Industry	Applicable To The Crowd:	None
Keyword:	Flexible Oil Storage Bladder	Thcickness:	1.2mm
Color:	Custom	Capacity:	Custom
Size:	L5.6MW2.06MH2.35M	Characters:	Waterproof;Sunproof;Anti-UV;Fear-Resistant
Use For:	Industrial/ Agriculture	MOQ:	2 Piece
Port:	Shenzhen/Guangzhou

Product Paramenters

Bladder tanks are lightweight, flexible, mobile and can last for many years. The materials used to make bladder walls can be re-used for other purposes. Liquid stored in a flexible bladder tank does not evaporate and any odor it may produce is completely sealed within the tank. Contaminants cannot enter a properly sealed tank.

Material:PVC coated tarpaulin Thickness :1.5mm Weight :1800gsm Color:Orange Size:Customized Tensile strength: Warp: 4563.3N Weft: 3852.3N Tear strength: Warp: 556N Weft: 472.9N

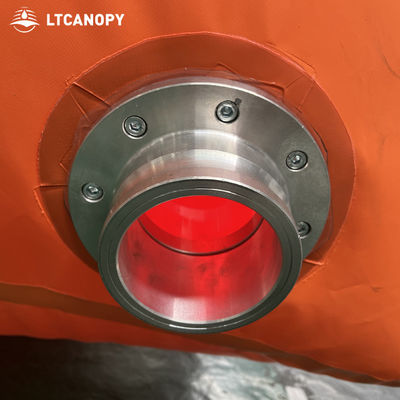

Fuel Storage Bladder Features: ●Tanks constructed using Fuel Resistant Fabric Suitable for oil, JP-1, JP-4, JP-8, and Diesel fuel ●All seams and connection points are 100% high frequency welding and reinforced for durability ●PVC Tanks are fully collapsible ●Easily & rapidly deployable in a variety of settings all over the world ●Portable design for simple fold, transport, and relocation ●Tanks are in the field ready to use with minimal site preparation ●Specially treated PVC coated as tank main material could prevent the tank from being corroded. ●Excellent UV protection performance so that it could be used in outdoor ●Thicker material could pervent tear

Advantages compared to other tanks: ●Unlike steel tanks, tarpaulin pillow bladder tanks will not rust or corrode ●Unlike other storage tanks, special safety fencing is not required for pillow tanks. A typical low cost stock fence is sufficient for dairy effluent storage applications

What can you store in a Flexible Tank? ●Hazardous chemicals ●Effluent ●Waste Water ●Potable Water ●Rainwater ●Stormwater ●Pool water ●Leachates ●Edible Oils and liquids ●Food grade liquids ●Hydraulic Frac Liquid Storage ●Liquid Fertiliser Storage ●Firefighting foam / chemicals ●Slurry

Item No	Capacity(Litres)	Length (Appox. when empty) L (mm)	Width (Appox. when empty) W (mm)	Max Fill Height (Appox.) H (mm)
FSLT440	10,000L	5,500mm	3,000mm	1,000mm
FSLT441	20,000L	6,800 mm	4,000mm	1,100mm
FSLT442	30,000L	7,000mm	5,000mm	1,300mm
FSLT443	40,000L	8,900mm	5,000mm	1,300mm
FSLT444	50,000L	8,500mm	6,000mm	1,400mm
FSLT445	60,000L	10,000mm	6,000mm	1,400mm
FSLT446	70,000L	11,400mm	6,000mm	1,000mm
FSLT447	80,000L	10,500mm	7,000mm	1,500mm
FSLT448	90,000L	11,600mm	7,000mm	1,500mm
FSLT449	100,000L	12,800mm	7,000mm	1,500mm
FSLT450	150,000L	12,200mm	10,000mm	1,600mm
FSLT451	200,000L	16,000mm	10,000mm	1,600mm
FSLT452	250,000L	16,000mm	12,000mm	1,600mm
FSLT453	300,000L	19,000mm	12,000mm	1,600mm
FSLT454	350,000L	20,000mm	13,000mm	1,600mm
FSLT455	400,000L	21,000mm	14,000mm	1,600mm
FSLT456	450,000L	22,000mm	15,000mm	1,600mm
FSLT457	500,000L	23,000mm	16,000mm	1,600mm
FSLT458	550,000L	24,700mm	16,000mm	1,600mm
FSLT459	600,000L	25,200mm	17,000mm	1,600mm
FSLT460	650,000L	27,200mm	17,000mm	1,600mm
FSLT461	700,000L	28,000mm	18,000mm	1,600mm
FSLT462	750,000L	30,000mm	18,000mm	1,600mm
